DIAMOND & CBN TOOLS
®
KEBLA
KEBLA Diamond & CBN Tools provides four types of bonding. They are electroplated bond, resin bond, metal bond and vitrified bond. Each of them has different advantages and characteristics according to the material they cut. For example, the electroplated bond are mostly used in manufacturing of engine valve, piston ring, V-belting, brake pad and ferrite. Vitrified bond wheels are used in paper roll grinding, bearing and camshaft manufacturing. The resin bond is widely used in the cutting tools industry, and the metal bond is often used in the glass, optics and stone industries.
​
All our products are made to order. We both produce new tools and also rework, although only electroplated and vitrified bond wheels are able to be reworked. All Kebla wheels have a standard precision of ±20 μ for dimension, max. 5 μ for runout and H7 for bore diameter tolerance unless there is a special request. All our products are checked thoroughly and rigidly to ensure their end quality.
​
Sharp, Precision & Long Lasting.
Application
Our products can be used for making:




Engine Valve
Piston Ring
V-Belt
Brake Pad

Ferrite


Paper Roll Grinding
Bearing
Our Products

Resin Bond

Resin Bond

Resin Bond

Resin Bond
1/3
Resin Bond

Stationary Dresser

Stationary Dresser

Stationary Dresser
1/2
Stationary Dresser

Electroplated Bond

Electroplated Bond

Electroplated Bond

Electroplated Bond
1/3
Electroplated Bond

Vitrified Bond

Vitrified Bond

Vitrified Bond
1/2
Vitrified Bond

Metal Bond

Metal Bond

Metal Bond
1/2
Metal Bond

Resin Bond

Resin Bond

Resin Bond

Resin Bond
1/3
RESIN BOND
Wheels are custom-made based on your order.
Shape : According to FEPA standard shape or your drawing
Size availability : up to 350mm
Grit size : Custom Diamond or CBN, from #800 up to D/B252
Shank material : Aluminium / steel

Vitrified Bond

Vitrified Bond

Vitrified Bond
1/2
VITRIFIED BOND
Wheels are custom-made based on your order.
Shape : According to FEPA standard shape or your drawing
Size availability : up to 700mm
Grit size : Custom Diamond or CBN, from #1500 up to D/B252
Shank material : Aluminium / steel / carbon fiber
​
Note:
Layer is mostly segmented

Electroplated Bond

Electroplated Bond

Electroplated Bond

Electroplated Bond
1/3
ELECTROPLATED BOND
Wheels are custom-made based on your order.
Shape : According to FEPA standard shape or your drawing
Size availability : up to 700mm
Grit size : Custom Diamond or CBN, from #800 up to D/B711
Shank material : Steel / stainless steel / tungsten carbide
​
Note:
tungsten carbide shank is mostly used for internal grinding pin only.

Metal Bond

Metal Bond

Metal Bond
1/2
METAL BOND
Wheels are custom-made based on your order.
Shape : According to FEPA standard shape or your drawing
Size availability : up to 250mm
Grit size : Custom Diamond or CBN, from #800 up to D/B711
Shank material : Steel

Stationary Dresser

Stationary Dresser
1/1

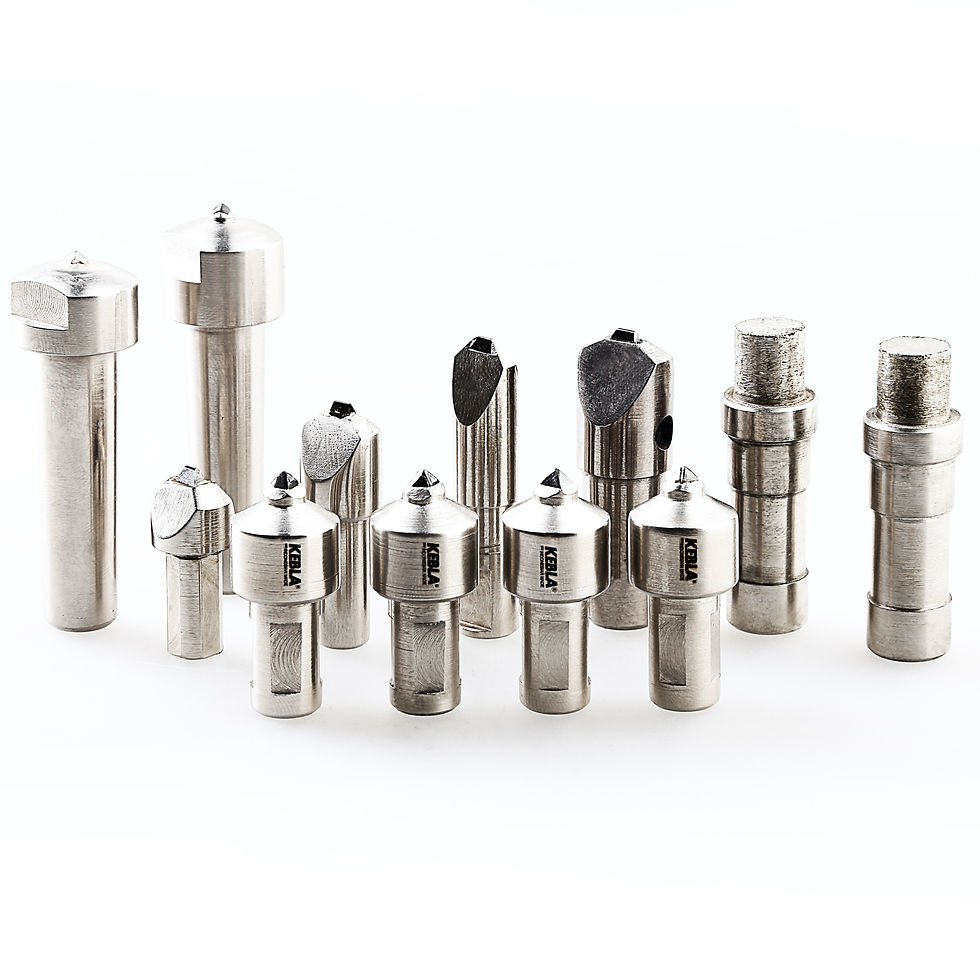

STATIONARY DRESSER
Multipoint - Singlepoint - Chisel
Shanks are custom-made based on your order.
Shape : Based on your drawing
Size availability : All sizes
Carat. : 0.5 / 1.0 / 1.5 / 2.0
Shank material : Steel
